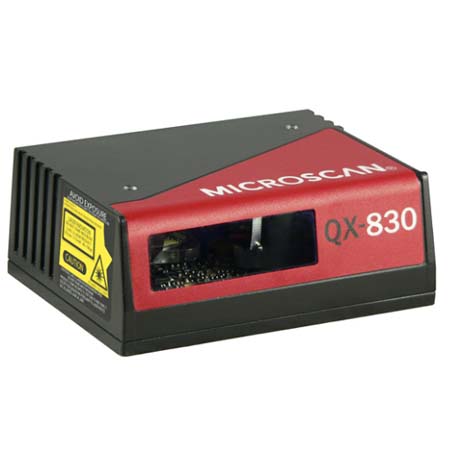

Microscan迈思肯QX-830工业用激光扫描器
  • 产品说明
  • 主要特征
  • 技术指标
  • 适用行业
  • 资源下载
  • 识别产品Microscan迈思肯扫描器欢迎来电咨询Microscan迈思肯扫描器价格和型号:020-87030040。

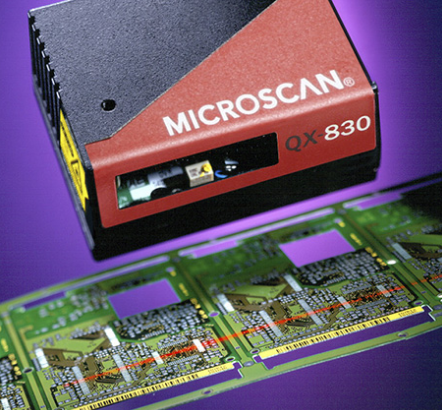

    QX-830工业条码扫描器结合革命性的灵活连接和高性能解码功能,可在几乎任何自动化环境中可靠地读取1D条形码。除了快速连接系统和X-Mode技术,QX-830具有IP64工业密封和可选的嵌入式以太网协议。

    高性能,简单的连接和IP64外壳使QX-830成为任何工业应用的理想工业条码扫描器。

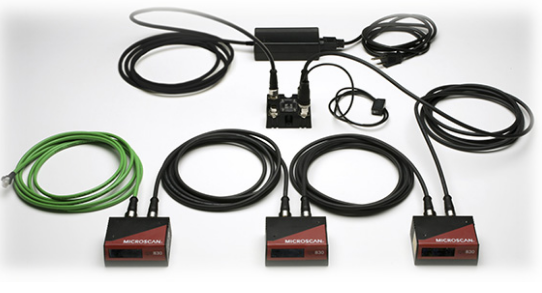

    快速连接系统:M12连接器和电线。即插即用设置。单或多扫描仪解决方案

    X-Mode技术:解码损坏,打印不良或未对齐的代码。确保高读取速率和吞吐量。

    高性能:强大的解码功能可以在高达10”(254 mm)波束宽度的条件下可靠地读取条形码到30”(762 mm)。

    实时反馈:扫描仪侧面的可见LED指示灯和“良好读取”绿色闪光灯可确认扫描仪的性能。绿色闪光灯在扫描仪的360度半径范围内可见。

    以太网协议:QX-830包括可选的嵌入式以太网TCP / IP和EtherNet / IP,用于高速通信。

    灵活性:QX-830的紧凑尺寸允许灵活定位各种应用。



    Microscan迈思肯QX-830工业用激光扫描器型号表
    Part Number Description
    FIS-0830-0001G QX-830, Industrial Barcode Reader, Single Line, Low Density, Serial
    FIS-0830-0002G QX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial
    FIS-0830-0003G QX-830, Industrial Barcode Reader, Single Line, High Density, Serial
    FIS-0830-0004G QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial
    FIS-0830-0005G QX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial
    FIS-0830-0006G QX-830, Industrial Barcode Reader, Raster Line, High Density, Serial
    FIS-0830-0010G QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial, Plastic Window
    FIS-0830-1001G QX-830, Industrial Barcode Reader, Single Line, Low Density, Serial+Ethernet
    FIS-0830-1002G QX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial+Ethernet
    FIS-0830-1003G QX-830, Industrial Barcode Reader, Single Line, High Density, Serial+Ethernet
    FIS-0830-1004G QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet
    FIS-0830-1005G QX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial+Ethernet
    FIS-0830-1006G QX-830, Industrial Barcode Reader, Raster Line, High Density, Serial+Ethernet
    FIS-0830-1010G QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet, Plastic Window




    艾韦迅IVYSUN是Microscan迈思肯扫描器的中国区核心经销商,货源充足、确保正品。专业的Microscan迈思肯扫描器产品技术服务团队,确保您采购使用无后顾之忧!购买国际品牌扫描器,请认准技术型服务商:艾韦迅IVYSUN (//www.robertcron.com)。

    Microscan迈思肯QX-830工业用激光扫描器特点

    • 快速连接系统

    • X-Mode 技术

    • 高性能

    • 实时反馈

    • 以太网协议

    • 摆放灵活

    PDF417 码

    PDF417 码

    MicroPDF 码

    MicroPDF 码

    GS1 Databar (RSS 码)

    GS1 Databar (RSS 码)

    线性条码

    线性条码


    Microscan迈思肯QX-830工业用激光扫描器配件表
    Part Number Description
    QX-1 and Cordsets
    98-000103-02 QX-1 Interface Device
    61-000148-02 QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 3M
    61-000162-02 QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 1M
    61-000153-02 QX Cordset, Host, Serial M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
    61-000164-02 QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
    61-000152-02 QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
    61-000165-02 QX Cordset, Host, Serial M12 12 pin Plug(Screw-down) to DB9 Socket, 3M
    61-000163-02 QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 3M
    61-000160-02 QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 1M
    61-000161-02 QX Cordset, M12 12 pin Plug(Screw-down) to MS-5100, 3M
    61-000166-02 QX Cordset, M12 12 Pin Plug(Screw-down) to Flying Leads, 3M
    61-000167-02 QX Cordset, M12 12 Pin Socket(Screw-down) to Flying Leads, 3M
    FIS-0210-0001G MS-Connect 210, Connectivity Box with Display
    FIS-0210-0002G MS-Connect 210, Connectivity Box
    FIS-0210-0003G MS-Connect 210, Connectivity Box with Display and Ethernet
    FIS-0210-0004G MS-Connect 210, Connectivity Box with Ethernet
    98-000013-04 Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210
    98-000013-05 Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210
    98-000013-06 Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210
    Power Supplies
    97-000012-01 QX Power Supply, M12 12 pin Socket, 1.3m
    97-000012-04 QX Power Supply, M12 12 pin Plug, 1.3m
    Mounting and Connectors
    98-500006-01 Mounting Plate Kit, Flat, Custom Surfaces
    98-200026-02 Right Angle Mirror Kit
    20-610024-01 Trigger Connector, 4-pin Plug (screw terminal and field wireable) (for self wiring)
    98-000016-01 Mounting Arm/Adapter Kit, MS-820/QX-830/QX-870, 6 inch
    98-000037-01 Extension Kit, All Scanners, 6 inch
    98-000054-01 Kit, Mounting Stand Base Plate, Small
    Package Detector/Sensor
    99-000020-02 QX Photo sensor, M12 4pin Plug, NPN, Dark On, 2m
    99-000020-01 QX Photo sensor, M12 4pin Plug, NPN, Dark Off, 2m
    Software/Manuals
    37-000001-01 TOOLS CD, User’s Manuals, ESP Software


    Microscan迈思肯QX-830工业用激光扫描器应用


    从轻型到重型的各种工业环境

    传送带生产线

    包装和分类

    电子产品生产

    机器内部的嵌入式设备
