识别产品Microscan迈思肯扫描器欢迎来电咨询Microscan迈思肯扫描器价格和型号：020-87030040。

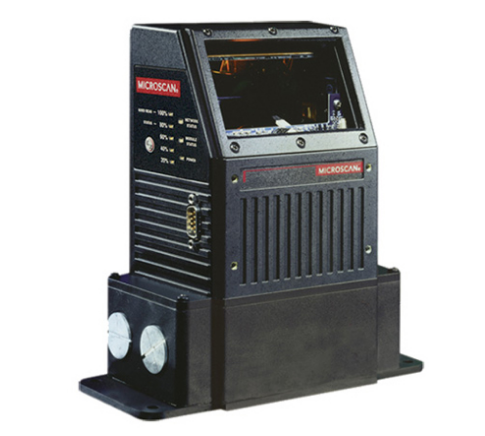

MS-890是一种重型扫描器，具有极高的灵活性，用于在各种工厂条件下解决大量实际应用.它具备经扩展的读码范围以及智能扫描光栅，为线性条码以及堆栈标签提供了强大的读取功能.

多功能和坚实的设计，使MS-890成为理想的工业用扫描器.

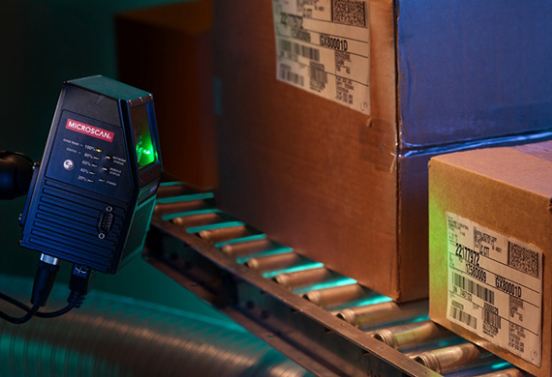

读码范围广：MS-890成功应用于读取不同距离的条码，如输送机或装配区域的安全或间隙区.

可见指示灯：MS-890的照明镜头在成功读码后会提供即时的可视化确认.在扫描时的前窗360度角内可看到“成功读码的绿灯指示”。

可选接线盒*IB-890接线盒提供简单和灵活的集成，无需任何特殊电缆或连接器.

功能包括：

• 以太网(可选MS-连接210)

• 可插入继电器模块

• 端子板连接

• 可连接手持扫描仪

智能光栅：MS-890智能光栅功能可以在读取多个条码或放置标签不一致时优化扫描角度和速度.

自动校准：自动校准功能可以自动确定和选择良好的聚焦，获得和跟踪扫码设置。

条码编程：改变扫描器的工厂配置很简单，只需放置条形码然后按下EZ按钮.通过这个功能很容易在不同的MS-890上做同样的设置.

迈思肯MS-890工业用扫描器型号表
Part Number	Description
FIS-0890-0001G	Long Range, Stand Alone Version, RS-232/485, 10-28 VDC
FIS-0890-0002G	Long Range, Wiring Box Ready, RS-232/485, 10-28 VDC

艾韦迅IVYSUN是Microscan迈思肯扫描器的中国区核心经销商，货源充足、确保正品。专业的Microscan迈思肯扫描器产品技术服务团队，确保您采购使用无后顾之忧！购买国际品牌扫描器，请认准技术型服务商：艾韦迅IVYSUN (//www.robertcron.com)。

迈思肯MS-890工业用扫描器特点

• IP65 封装

• 自动校准

• 读码范围广

• 智能光栅

• 可见指示灯

• 条码编程

迈思肯MS-890工业用扫描器配件表
Part Number	Description
FIS-0210-0001G	MS-Connect 210, Connectivity Box with Display
FIS-0210-0002G	MS-Connect 210, Connectivity Box
FIS-0210-0003G	MS-Connect 210, Connectivity Box with Display and Ethernet
FIS-0210-0004G	MS-Connect 210, Connectivity Box with Ethernet
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
61-000122-01	Cable, To MS-Connect 210, Host RS-422/485 for Multidrop, 6 ft
61-000123-01	Cable, To MS-Connect 210, Host/AUX RS-232, for Daisy Chain 210 to 210, 6 ft
FIS-0001-0030G	IB-3PC Keyboard Wedge/Interface Box
98-000039-02	Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer
98-000040-02	IB-150 Interface and reader cable, 6 ft
98-000051-01	USB Conversion Kit, IC-3USB
61-000034-02	Cable, Comm/Serial , 25pin Socket to 9pin Socket, 6 ft
61-100029-03	Cable, Connects IB-150 to IB-150, 1 ft , Daisy Chain
61-000010-02	Cable, Communication, DB-9 Socket to DB-9 Socket, 6 ft
98-000011-01	Glass Window Replacement Kit
98-000011-02	Plastic Window Replacement Kit
61-000154-01	Daisy Chain/Comm Adapter
Wiring Box
99-420003-04	IB-890 Wiring Box (use w/FIS-0890-0002G)
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM
12-000130-01	CGB’s (sealed strain relief wire clamp)
Power Supply
97-100004-15	Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332)
Mounting and Connectors
98-000017-01	Mounting Arm/Adapter Kit, IB-890/FIS-0880-0002, 6 inch
98-000018-01	Mounting Arm/Adapter kit, MS-890, 6 inch
98-000046-01	Kit, Base Plate
98-200037-01	Standard Flat Mounting Plate Kit, MS-890, Custom Surfaces
20-610024-01	Trigger Connector, 4-pin Plug (screw terminal and field wireable) (for self wiring)
20-610020-01	Power Connector, 3-pin Socket (screw terminal and field wireable) (for self wiring)
Package Detector/Sensor
99-000017-01	Photo Sensor, Visible, NPN, DARK ON
99-000017-02	Photo Sensor, Visible, NPN, LIGHT ON
99-000004-01	Package Detector, Standard Diffuse, 120 inch Range, 4-pin Plug
99-000004-02	Package Detector, Standard Diffuse, 120 inch Range, Unterminated
Software/Manuals
37-000001-01	TOOLS CD, User’s Manuals, ESP Software

迈思肯MS-890工业用扫描器应用：

轻工业到重工业

升降机或传送带

工厂

规格表
