识别产品Microscan迈思肯扫描器欢迎来电咨询Microscan迈思肯扫描器价格和型号:020-87030040。

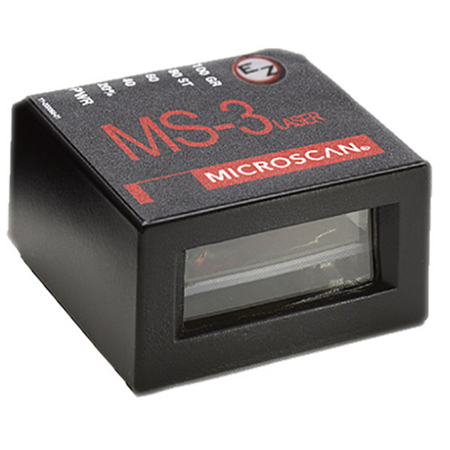

在嵌入式小型条码扫描器中,MS-3 Laser 具有速度最快的读取 性能。70 度的广阔扫描角度,并具有小型的尺寸和灵活的安装方式。
MS-3激光条码扫描仪在嵌入式紧凑型条码扫描器中提供快速的读取性能。 70度的宽扫描角度与超紧凑尺寸和灵活安装相结合。
高性能和灵活性使MS-3成为嵌入式仪器可靠读取的良好选择。
紧凑轻巧:1.75英寸(44.5毫米)方形,85英寸(21.6毫米)高的扫描仪重量只有57克,便于安装在机器人设备或狭小的空间。
高扫描速度:可调节扫描速度从每秒300到1000个解码,欧姆龙迈思肯世界级的解码算法确保每次都能准确读取。
扫描角度宽:超过70度的宽扫描角度和工厂定制的焦点加起来可以节省系统内的空间,从而允许更大的灵活性定位。
可见指示灯:扫描仪顶部的照明LED提供对扫描仪性能的视觉确认。
实时控制:输入包括触发信号,“新主控”输入和用于复位计数器或释放输出的可编程输入。输出可以被配置为在包括匹配码和诊断操作的各种条件下激活。
Microscan迈思肯MS-3小型条码扫描器型号表 | |
Part Number | Description |
FIS-0003-0001G | Laser, Single Line, Low Density |
FIS-0003-0002G | Laser, Single Line, High Density |
FIS-0003-0003G | Laser, Raster, Low Density |
FIS-0003-0004G | Laser, Raster, High Density |
FIS-0003-0005G | Laser, Single Line, Low Density, Right Angle |
FIS-0003-0007G | Laser, Raster, Low Density, Right Angle |
艾韦迅IVYSUN是Microscan迈思肯扫描器的中国区核心经销商,货源充足、确保正品。专业的Microscan迈思肯扫描器产品技术服务团队,确保您采购使用无后顾之忧!购买国际品牌扫描器,请认准技术型服务商:艾韦迅IVYSUN (//www.robertcron.com)。
Microscan迈思肯MS-3超小型条码扫描器特点
高性能与灵活性使 MS-3 Laser 成为嵌入式扫描设备中阅读性能可靠的理想之选。
体积小巧,机身轻盈
高速扫描
广阔的扫描角度
可见指示器
实时控制
线性条码 |
|
PDF417 |
|
MicroPDF |
Microscan迈思肯MS-3超小型条码扫描器配件表 | |
Part Number | Description |
FIS-0210-0001G | MS-Connect 210, Connectivity Box with Display |
FIS-0210-0002G | MS-Connect 210, Connectivity Box |
FIS-0210-0003G | MS-Connect 210, Connectivity Box with Display and Ethernet |
FIS-0210-0004G | MS-Connect 210, Connectivity Box with Ethernet |
98-000013-04 | Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890 |
98-000013-05 | Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 |
98-000013-06 | Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 |
61-000127-02 | Cable, MS-2 to MS-Connect 210, 6 ft |
FIS-0001-0030G | IB-3PC Keyboard Wedge/Interface Box |
98-000051-01 | IC-3USB, USB Conversion Kit |
FIS-0001-0035G | IC-332, Connects MS-2 to IB-131 |
99-000018-01 | IB-131, Interface Box |
98-000039-02 | Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer |
61-300026-03 | Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft |
61-000010-02 | Cable, Communication, DB-9 Socket to DB-9 Socket, 6 ft |
61-000011-02 | Cable, MS-820 to IB-131 (also use for MS-2, 3, 4, 9, 710 and MINI Extension) |
61-100029-03 | Cable, IB-131 Daisy Chain, 1 ft |
20-500013-01 | DeviceNet Protocol Box |
Power Supplies | |
97-000002-01 | Power Supply, 90-264 VAC,+5VDC, USA /Euro Plug (use with IB-3PC) |
97-100004-15 | Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332) |
Mounting and Connectors | |
98-000048-01 | Mounting Arm/Adapter Kit, 4 inch, MS-2, MS-3 |
98-000054-01 | Kit, Mounting Stand Base Plate, MS-2, MS-3 |
98-000053-01 | Extension Kit, 4 inch, MS-2, MS-3 |
98-000053-02 | Mounting Arm Extension Kit, 3 inch, MS-2, MS-3 |
98-000060-01 | Kit, Bracket, Side Mount, MS-2, MS-3 |
98-000059-01 | Kit, Bracket, Angle Mount, MS-2, MS-3 |
98-000057-01 | Kit, Bracket, Through Hole Mount, MS-2, MS-3 |
98-000058-02 | Kit, Extended Right Angle Mirror, MS-2, MS-3 |
98-000061-03 | MS-2, MS-3 to MS-520/MS-525, Bracket Conversion Kit |
20-610024-01 | Trigger Connector, 4-pin Plug (screw terminal and field wireable for custom wiring into IB-131) |
20-610020-01 | Power Connector, 3-pin Socket (screw terminal and field wireable for custom wiring into IB-131) |
Package Detector/Sensor | |
99-000017-01 | Photo Sensor, Visible, NPN, DARK ON (for use with IB-131) |
99-000017-02 | Photo Sensor, Visible, NPN, LIGHT ON (for use with IB-131) |
Software/Manuals | |
37-000001-01 | TOOLS CD, User’s Manuals, ESP Software |

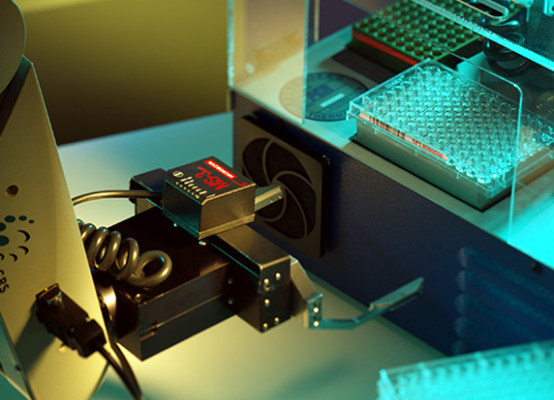

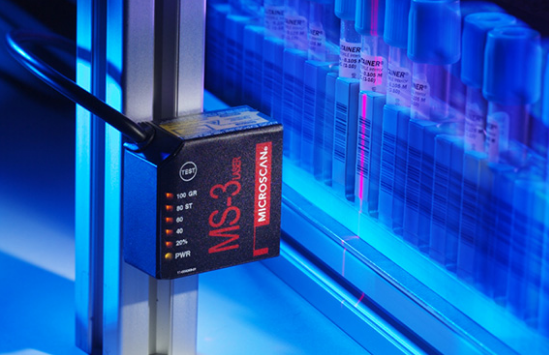

Microscan迈思肯MS-3超小型条码扫描器应用:
临床仪器
银行 ATM 设备
停车场
收款机终端
机器人技术
