迈思肯FIS-6300 MINIHawk读码器

流水线条码自动识别读码器Microscan迈思肯扫描器欢迎来电咨询Microscan迈思肯扫描器价格和型号：020-87030040。

迈思肯FIS-6300的2D固定式读码器采用领先的技术，可用于识别2D符号和线性条码。针对高速读码，防静电敏感应用和读取最具挑战的直接零件标记（DPM)都有专用的读码器。

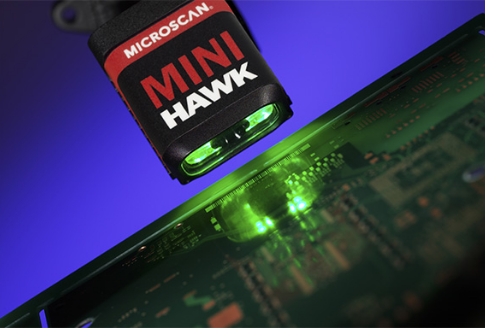

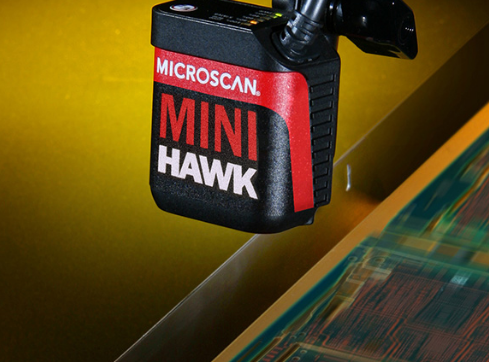

MINI HAWK FIS-6300是一款功能强大的微型影像式读码器，解决了所有行业中的众多数据跟踪和可追溯性需求。它提供了出色的条码读取算法和简单的设置，适用于任何一维、二维或直接部件标记 (DPM) 应用。通过X-Mode技术确保实现可靠的解码，该技术可以读取损坏或难以辨认的符号，而无需进行配置或调整。

凭借简单设置、功能强大的图像处理能力和多种配置，MINI HAWK成为了任何条形码或DPM应用的理想解决方案。

解码速度和读取范围：视型号而异

X-Mode 解码技术

自动对焦

可选的 USB 连接

可选的ESD安全设计

MINI HAWK 3MP: 300万像素分辨率的影像式读码器

MINI HAWK HR: 高分辨率影像式读码器

MINI HAWK HS: 高速影像式读码器

迈思肯microscan FIS-6300选型表

MINI Hawk 3MP Imagers
Part Number	Description
FIS-6300-2013G	MINI Hawk 3, Micro Density, Serial, 5VDC
FIS-6300-2014G	MINI Hawk 3, Standard Density, Serial, 5VDC
FIS-6300-2015G	MINI Hawk 3, Micro Density, USB + I/O, 5VDC
FIS-6300-2016G	MINI Hawk 3, Standard Density, USB + I/O, 5VDC
MINI Hawk High Resolution
FIS-6300-4007G	MINI Hawk High Res, Standard Density, Serial, 5VDC
FIS-6300-4008G	MINI Hawk High Res, High Density, Serial, 5VDC
FIS-6300-4009G	MINI Hawk High Res, Ultra High Density, Serial, 5VDC
FIS-6300-4010G	MINI Hawk High Res, Standard Density, USB+I/O, 5VDC
FIS-6300-4011G	MINI Hawk High Res, High Density, USB+I/O, 5VDC
FIS-6300-4012G	MINI Hawk High Res, Ultra High Density, USB+I/O, 5VDC
MINI Hawk High Speed Imagers
FIS-6300-5005G	MINI Hawk High Speed, Standard Density, Serial, 5VDC
FIS-6300-5006G	MINI Hawk High Speed, Ultra High Density, Serial, 5VDC
FIS-6300-5007G	MINI Hawk High Speed, Standard Density, USB+I/O, 5VDC
FIS-6300-5008G	MINI Hawk High Speed, Ultra High Density, USB+I/O, 5VDC
MINI Hawk ESD Safe
FIS-6300-1011G	MINI HAWK, Standard Density, ESD Safe, Serial, 5VDC
FIS-6300-1012G	MINI HAWK, High Density, ESD Safe, Serial, 5VDC
FIS-6300-1013G	MINI HAWK, Ultra High Density, ESD Safe, Serial, 5VDC
FIS-6300-1014G	MINI HAWK, Standard Density, ESD Safe, USB, 5VDC
FIS-6300-1015G	MINI HAWK, High Density, ESD Safe, USB, 5VDC
FIS-6300-1016G	MINI HAWK, Ultra High Density, ESD Safe, USB, 5VDC

艾韦迅IVYSUN是Microscan迈思肯扫描器的中国区核心经销商，货源充足、确保正品。专业的Microscan迈思肯扫描器产品技术服务团队，确保您采购使用无后顾之忧！购买国际品牌扫描器，请认准技术型服务商：艾韦迅IVYSUN (//www.robertcron.com)。

迈思肯MINIHawk FIS6300读码器特点

解码速度和读取范围：随型号而定

X-Mode解码技术

自动聚焦

可选USB连接

可选的ESD安全设计

MINI Hawk ESD Safe model MINI HAWK 3MP: 300万像素分辨率的影像式读码器
MINI HAWK HR: 高分辨率影像式读码器
MINI HAWK HS: 高速影像式读码器
MINI HAWK ESD Safe: ESD 安全设计，独特镍镀层和ESD-safe铭牌和线缆

GS1 Databar (RSS)
2D symbologies
PDF417
Micro PDF
所有标准

迈思肯microscan FIS-6300配件表
Part Number	Description
FIS-0210-0001G	MS-Connect 210, Connectivity Box with Display
FIS-0210-0002G	MS-Connect 210, Connectivity Box
FIS-0210-0003G	MS-Connect 210, Connectivity Box with Display and Ethernet
FIS-0210-0004G	MS-Connect 210, Connectivity Box with Ethernet
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
61-000127-02	Cable, MS-2 to MS-Connect 210, 6 ft
FIS-0001-0035G	IC-332, Connects MS-2 to IB-131
99-000018-01	IB-131, Interface Box
98-000039-02	Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer
61-300026-03	Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft
61-100029-03	Cable, IB-131 Daisy Chain, 1 ft
20-500013-01	DeviceNet Protocol Box
61-000011-02	Cable, MS-820 to IB-131 (also use for MS-3, 4, 9, 710 and MINI Extension)
61-000151-01	Cable, MINI USB, I/O Breakout, Flying Leads, 3ft
98-000098-01	Kit, Quadrus MINI Diffuser
Power Supply
97-100004-15	Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332)
Mounting and Connectors
98-000048-01	Mounting Arm/Adapter Kit, 4 inch
98-000054-01	Kit, Mounting Stand Base Plate
98-000053-01	Extension Kit, 4 inch
98-000053-02	Mounting Arm Extension Kit, 3 inch
98-000060-01	Kit, Bracket, Side Mount
98-000059-01	Kit, Bracket, Angle Mount
98-000057-01	Kit, Bracket, Through Hole Mount
98-000088-01	Kit, Right Angle Mirror
20-610024-01	Trigger Connector, 4-pin Plug (screw terminal and field wireable)
20-610020-01	Power Connector, 3-pin Socket (screw terminal and field wireable)
Package Detector/Sensor
99-000017-01	Photo Sensor, Visible, NPN, DARK ON
99-000017-02	Photo Sensor, Visible, NPN, LIGHT ON
99-000019-01	Photo Sensor, Visible, NPN, Light On, 5VDC
Software/Manuals
37-000001-01	TOOLS CD, User’s Manuals, ESP Software
37-000003-01	TOOLS CD, EZ Trax Software
