识别产品霍尼韦尔honeywell采集器欢迎来电咨询霍尼韦尔honeywell手持PDA,手持终端价格和型号:020-87030040。
霍尼韦尔的企业数字助理是数据密集型应用环境中的移动工作者的理想选择,能够满足其对于坚固耐用而又仅有口袋大小的移动数据处理设备的需求。我们的EDA完美地结合了耐用性、特征组和尺寸大小,在与传统移动数据终端相比时,三者的平衡性尤为凸显。
MX9移动数据终端
霍尼韦尔MX9超级坚固型移动数据终端可降低总体拥有成本,并支持随时随地的无线连接,以确保用户始终保持连通性。要获得“超级坚固型设备”的称号,这个设备必须达到IP67工业等级, 能够经受住从2米高处到水泥地面的多次跌落及1m范围内近2000次的翻滚测试。MX9的超强坚固性能不仅停留在实验室阶段。曾在装卸码头被当作锤子来修理栈板,曾被用户在各种极端条件下使用,MX9工业级移动数据终端的这些经历证明了其实至名归。

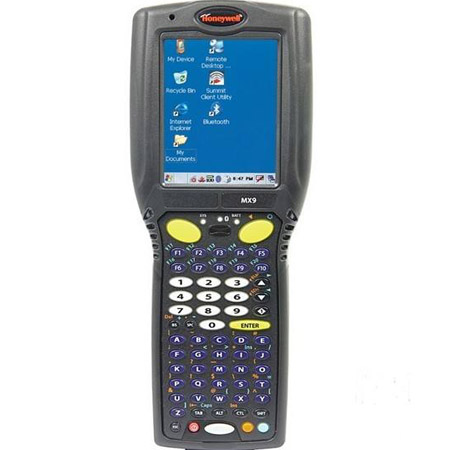

实物图
MX9移动数据终端 Accessories
Batteries
MX9380BATTERY - MX9 Main Battery, Lithium Ion
MX9381BATTERY - MX9 Main Battery, Lithium Ion, Low-temperature
MX9382BATTERY - MX9 Main Battery, Lithium Ion, 10 pack
MX9383BATTERY - MX9 Main Battery, Lithium Ion, Low-temperature, 10 pack
Chargers
MX9385CHARGER - 4 unit Main Battery Charger, includes power supply and US power cord. Not for use in Hazardous Locations. Can be used with MX9HL outside Hazardous Locations
MX9384CHARGER - 4 unit Main Battery Charger, includes power supply. C14 type power cord must be ordered separately, not for use in Hazardous Locations. Can be used with MX9HL outside Hazardous Locations. AC power cord is not included. A country specific power cord must be purchased separately. When this product is shipped internationally it may be necessary to order and ship the appropriate international AC Power Cable at the same time. This product has a C14 style AC power connector, so please choose the proper C14 style cable from the International cables in the power cable section below.
Cradles
MX9002DSKCRDL - MX9 desktop cradle, with spare battery charging and Ethernet, USB host, USB client, and powered RS-232 connectors. Power supply and power cord must be ordered separately. Must order power supply MX9301PWRSPLY or MX9302PWRSPLY separately. Must order country specific, C14 power cord separately. Rated for operation between 0 deg C and 40 deg C (32 deg F and 104 deg F) and spare battery charging between 10 deg C and 40 deg C (50 deg F and 104 deg F). Not for use in Hazardous Locations. Can be used with the MX9HL outside Hazardous Locations.
MX9005VMCRADLE - MX9 active vehicle cradle. Supports MX9 charging. Supports USB host, USB client and powered RS-232 connector. Must order power supply and cables separately. For 12V DC operation, order cable 9000A079CBL12ML3. Communication cables must be ordered separately from cables listed in the “Interface Cables” section. RAM mount bracket must be ordered separately. Cradle will perform “in-unit” battery trickle charging. Tethered serial RS-232 barcode scanning supported. Rated for operation to 14 deg F and 122 deg F (-10 deg C and 50 deg C).
MX9007BRKTKIT - RAM mount kit for MX9 active vehicle cradle. For use with MX9005VMCRADLE.
Handles
MX9401HANDLE - MX9 padded handle with rubber overmold and two finger trigger, includes wrist strap, for use with MX9, MX9CS, and MX9HL. Rated down to -30 deg C (-22 deg F).
Cases
MX9410CASE - Carry case for MX9 with no handle, includes shoulder strap. Includes display and keyboard protective film.
MX9411CASE - Carry case for MX9 with handle, includes shoulder strap. Includes display and keyboard
protective film.
艾韦迅IVYSUN是霍尼韦尔honeywell采集器的中国区核心经销商,货源充足、确保正品。专业的霍尼韦尔honeywell手持终端产品技术服务团队,确保您采购使用无后顾之忧!购买国际品牌扫描器,请认准技术型服务商:艾韦迅IVYSUN (//www.robertcron.com)。
MX9移动数据终端 Features and Benefits
超强的坚固性:IP67级设计,能够承受从6英尺高处到水泥地面的多次坠落和1m范围内近2000次的翻滚,减少停工时间,降低了总体拥有成本
随处无线连接:通过WWAN无线电、GPS和WLAN支持实时无线连接,以获取主要信息
可自定义的键盘: 带有10个单击式功能键的完整的制图键盘,增加了使用的便捷性,提升了工作效率
室外清晰可见的显示器: 半反射性显示技术即使在直射阳光下仍可识读,满足了港口、多模态及其他顾客对室外数据采集的需求
霍尼韦尔honeywell MX9移动采集器参数
性能参数
设备类型数据采集器
操作系统Windows CE5.0 Professional
CPUPXA320 800MHz处理器
内存128MB Flash,128MB SDRAM
显示器显示屏:3.7英寸QVGA(240x320),半反射
触控板:电阻式触摸屏,带笔针
按键带背光灯的62键字母数字式和38键数字转字母式
接口RS-232,USB2.0客户端,语音输出,Ethernet,充电连接
识读性能解读标准1D和2D条码体系
无线数据WWAN:GSM,GPRS,Edge
WLAN:IEEE 802.11a/b/g无线网卡
WLAN安全标准:WEP,802.1x,LEAP,TKIP,MD5,EAP-TLS,EAP-TTLS,WPA-PSK,WPA v2.0,PEAP
WLAN天线:内置多样性天线
WPAN:Bluetooth2.0+EDR,classII
GPS:GPS接收器
机械/电气性能
防护设计抗摔强度:1.8m高度到水泥地面的多次坠落;
抗翻滚程度:依照IEC60068-2-32规格,能够承受1m范围内的2000次翻滚;
环境密封等级:受到独立认证的防潮和防微尘颗粒等级达到IP67标准;
ESD:±8kV接触放电;±15kV空气放电;
电池锂电池,11.1V,2400mAh;
12小时全班次电池寿命(每10秒通过WLAN或蓝牙扫描和发送数据一次);
其它参数
应用程序Wavelink TE,RFTerm(TN5250,TN3270,VT220),AppLock工具控制用户应用权限及不希望改变的配置,Wavelink Avalanche和LXE Express Config兼容,Stay-Linked Ready;
产品尺寸251x99x69mm
产品重量595g
环境参数操作温度:-20-50℃,存储温度:-20-70℃
相对湿度:5%-95%(无凝结)
其它功能音频:麦克风、扬声器带可调节盈利控制;
存储扩展:用户可接触的SD存储卡槽,支持1GB或4GB SD存储卡;
扫描头:Near-Far Range Laser(Lorax),Standard Ranger Laser,2D imager;
开发环境:用户Windwos Embedded系统的霍尼韦尔SDK开发套件;
霍尼韦尔honeywell MX9移动采集器应用
物流,制造,电商,码头,电子
