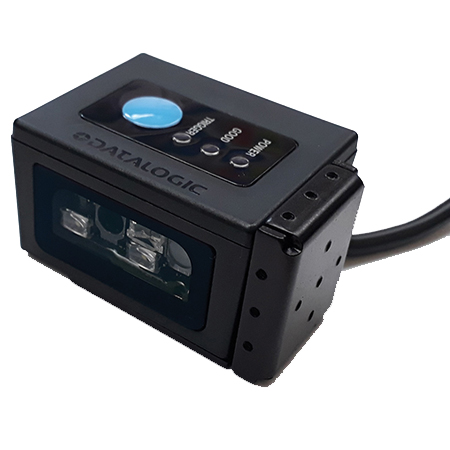

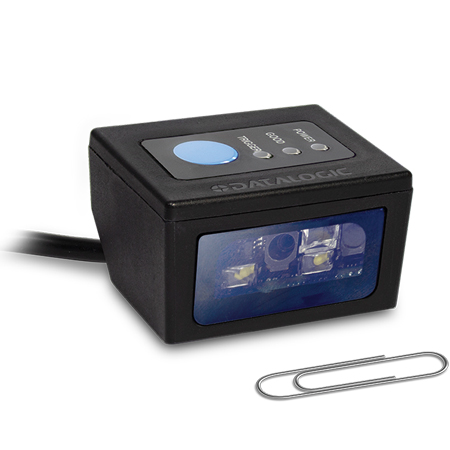

datalogic得利捷DSM04XX固定式扫描器
datalogic得利捷DSM04XX固定式扫描器
  • 产品说明
  • 主要特征
  • 技术指标
  • 适用行业
  • 资源下载
  • Datalogic得利捷发布DSM04XX固定扫描模块新品。如应用所需空间有限,又期望强劲的性能,可以使用。DSM04XX 固定扫描模块 ,小的尺寸,佳的性能,提供WVGA、百万像素和广角型号。满足不同应用需求,坚固的结构和简单的集成,可以支持多种平台和应用方式。

    datalogic得利捷DSM04XX固定式扫描器特点:

    可选的百万像素和WVGA分辨率可以满足不同的性能需求。宽角度镜头的型号特别适合对读取空间有限制的应用。

    外壳由高强度树脂制成,可抵抗清洁溶剂和消毒液的侵蚀。IP54防护等级坚固可靠的扫描性能。

    DSM04XX对系统设计人员来说在电气和结构上都易于集成。随机附带的安装组件允许从任意角度进行安装。通讯接口包括USB,RS-232和多接口,可以“即插即用”安装,非常适合必须支持多个平台和多种应用场景的集成商。


    datalogic得利捷DSM04XX固定式扫描器参数:


    品牌 得利捷(Datalogic) 扫描头分辨率 752 x 480像素
    型号 DSM04XX(官网) 颜色 黑,白
    类型 收银台用的二维码扫描平台 接口 USB键盘; USB COM; RS-232
    外观尺寸 47 x 27 x 38 mm
    重量 USB版本:131g
    RS-232版本:155g
    RJ-45版本: 96g


    MODELS

    DSM0421

    DSM0400, 2D, WVGA, USB

    DSM0422-DL

    DSM0400, 2D, MP-DL, USB

    DSM0452-DL

    DSM0400, 2D, MP-DL, RS-232

    DSM0492-DL

    DSM0400, 2D, MP-DL, RJ-45

    DSM0422-WA

    DSM0400, 2D, MP-WA, USB

    DSM0452-WA

    DSM0400, 2D, MP-WA, RS-232

    DSM0492-WA

    DSM0400, 2D, MP-WA, RJ-45

    DECODING CAPABILITY

    1D / Linear Codes

    All standard 1D codes including: UPC/EAN/JAN, P2 / P5 add-ons;

    Code 39; Italian Pharmacode 39; Code 128; C128 ISBT; I 2 of 5; Standard 2 of 5; Interleaved 2 of 5;

    Industrial 2of 5; Datalogic 2of5; IATA; Code 11; Codabar;

    ABC Codabar; EAN 128; Code 93; MSI/Plessey; RSS-14;

    BC412; Databar Limited; Databar Omnidirectional;

    Databar Expanded; IATA; Trioptic; Matrix 2/5;

    Telepen. Composite codes CC-A, CC-B and CC-C

    2D Codes

    Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;Micro QR Code; QR Code

    Postal Codes

    Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
    Mail Code (RM4SCC)

    Stacked Codes

    EAN/JAN Composites; GS1 DataBar Composites; GS1;DataBar Expanded Stacked; GS1 DataBar Stacked;GS1 DataBar Stacked Omnidirectional; MacroPDF;MicroPDF417; PDF417; UPC A/E Composites

    ELECTRICAL

    Input Voltage

    5 VDC ± 5%

    Current: DSM0421
    USB Connected

    Operating (Typical): ≈ 214 mA**
    Standby/Idle (Typical): ≈ 57 mA*
    Low Power: ≈ 3.9 mA

    Current: DSM0422 /
    DSM0492 USB Connected

    Operating (Typical): ≈ 214 mA**
    Standby/Idle (Typical): ≈ 55 mA*
    Low Power: ≈ 5 mA

    Current: DSM0452 /
    DSM0492 RS-232 Connected

    Operating (Typical): ≈ 246 mA**
    Standby/Idle (Typical): ≈ 50 mA*
    Low Power: ≈ 9 mA

    **If “power” and “trigger” status LED are enabled add 30 mA
    * If “power” status LED is enabled add 15 mA

    ENVIRONMENTAL

    Ambient Light

    0 - 100,000 lux

    Humidity (Non-condensing)

    5 - 95%

    Drop Resistance

    Withstands repeated drops from 3 ft onto a concrete surface.

    Particulate and Water
    Sealing

    IP54

    Temperature

    Operating: -20 to 50°C / -4 to 122 °F
    Storage/Transport: -40 to 70 °C / -40 to 158 °F

    INTERFACES

    Interfaces

    USB: HID-KBD, COM, OEM& Composite (KBD & COM);RS-232

    PHYSICAL CHARACTERISTICS

    Colors Available

    Black

    Dimensions

    4.7 x 2.7 x 3.8 cm / 1.85 x 1.06 x 1.50 in

    Weight (with cable)

    USB version - Approximately 131 g / 4.62 oz
    RS-232 version – Approximately 155 g / 5.47 oz
    RJ-45 version – Approximately 96 g / 3.39 oz

    READING PERFORMANCE

    Imager Sensor

    WVGA: 752 x 480 pixels
    MP: 1280 x 960 pixels

    Light Source

    Aiming: 650 nm VLD Illumination: White LEDs

    Field of View

    DSM0421: 40°H x 26°V
    DSM04X2-DL: 42°H x 32°V
    DSM04X2-WA: 52°H x 40°V

    Reading Angle

    Pitch: +/- 60°; Roll (Tilt): +/-180°; Skew (Yaw): +/- 60°

    Reading Indicators

    Beeper (Adjustable volume); Good Read Feedback:
    Datalogic ‘Green Spot’ Technology; Good read top LED.

    Resolution (Maximum)

    1D Linear: 2.5 mils (DSM04X2) – 3.0 mil (DSM0421)
    Data Matrix: 6 mils (DSM04X2) - 7.5 mils (DSM0421)
    PDF417: 3 mils (DSM04X2) - 6.6 mils (DSM0421)

    Print Contrast (Minimum)

    25%

    Image Capture

    Greyscale: 256; Graphic Formats: BMP, JPEG

    READING RANGES

    Typical Depth of Field

    Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.

    1D/2D Codes: DSM0421

    3 mils Code 39: 8.0 to 17.5 cm / 3.1 to 6.9 in
    5 mils Code 39: 5.5 to 26.0 cm / 2.1 to 10.2 in
    13 mils EAN-13: 4.5 to 42.0 cm / 1.8 to 16.5 in
    20 mils Code 39: up to 59.0 cm / up to 23.2 in
    15 mils Data Matrix: 3.5 to 26.5 cm / 1.4 to 10.4 in
    10 mils PDF417: up to 20.0 cm / up to 7.9 in

    1D/2D Codes: DSM04X2-DL

    3 mils Code 39: 6.5 to 20.0 cm / 2.5 to 7.8 in
    5 mils Code 39: 3.5 to 29.0 cm / 1.3 to 11.4 in
    10 mils Data Matrix: 7.5 to 26.0 cm / 2.9 to 10.2 in
    13 mils EAN-13: 4.5 to 42.0 cm / 1.7 to 16.5 in
    15 mils Data Matrix: 5.5 to 32.0 cm / 2.1 to 12.5 in 20 mils
    Code 39: up to 60.0 cm / up to 23.6 in

    1D/2D Codes: DSM04X2-WA

    3 mils Code 39: 5.0 to 18.0 cm / 2.0 to 7.1 in
    5 mils Code 39: 3.0 to 24.0 cm / 1.2 to 9.4 in
    10 mils Data Matrix: 4.0 to 20.0 cm / 1.6 to 7.9 in
    13 mils EAN-13: 3.5 to 37.0 cm / 1.4 to 14.6 in
    15 mils Data Matrix: 3.0 to 25.0 cm / 1.2 to 9.8 in
    20 mils Code 39: up to 60.0 cm / up to 23.6 in

    SAFETY & REGULATORY

    Agency Approvals

    The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifcations.

    Environmental Compliance

    Complies to China RoHS; Complies to EU RoHS

    Laser Classifcation

    Caution Laser Radiation - Do not stare into beam IEC 60825 Class 2

    Operating System Support

    Windows; Linux, Android

    Tools

    DESP Demonstration & Confguration Utility; Datalogic Aladdin

    WARRANTY


    Warranty

    3-Year Factory Warranty


    datalogic得利捷DSM04XX固定式扫描器应用:


    自助式设备、售票机、门控系统、旋转门、自动售货机和自助加油站
