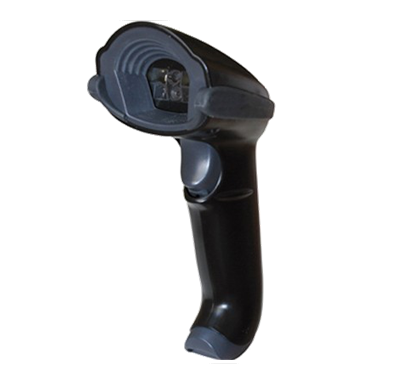

二维扫描枪DS6502简介:
二维码的应用越来越多,从工业追溯到商业应用,其载体信息量大,占用空间小的优点日益突显。许多企事业单位正在经历被动或主动的引入二维码,实现从一维码到二维码的硬件和软件设备升级。而对于那些还在运用一维码的企业来说,购置新扫描器时往往会考虑到很多因素。在追求一维码扫描性能的同时,如果能兼顾未来二维码的读取而在硬件上并不需要全新的投入,而是简单的升级,将会是许多管理者不难想到的明智之举。
艾韦迅IVYSUN自主研发的二维扫描枪有着良不不扫描质量,超高的性价比,更接受广大客户的定制,在业界拥有良不不口碑与广大的客户,是真正的优质品牌。专业的二维扫描枪产品技术服务团队,确保您采购使用无后顾之忧!购买二维扫描枪,请认准技术型服务商:艾韦迅IVYSUN (//www.robertcron.com)。
二维扫描枪DS6502特点特征:
精确的红光瞄准器
大视角影像感光器
高速,全方向的一维、二维码影像读取
自动或手动触发
可选的蜂鸣器音调
手机屏幕条码读取
超低功耗
有白色和黑色外壳可选
外壳坚固可靠
符合人体工程学的设计
Physical Characteristics |
|
Dimensions: |
18 cm H x 10.7cm L x 7 cm W |
Weight: |
160g |
Voltage and Current: |
5 VDC +/-10% @ 400 mA |
Performance Characteristics |
|
Image (Pixels): |
640 pixels (H)x 480 pixels (V) |
Light Source: |
Aiming: 617 nm LED; illumination: 6500K LED |
Field of View: |
40° (H) x 26° (V) |
Roll / Pitch / Yaw: |
360°, ±65°, ±60° |
Print Contrast: |
25% minimum reflective difference |
Symbology Decode Capability |
|
1-D: |
UPC/EAN, UPC/EAN with supplementals, Bookland , Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, |
2-D: |
PDF417, MicroPDF417, Composite Codes, Maxicode, QR Code, MicroQR |
Motion Tolerances: |
up to 25 in. (63.5 cm) per second |
Interfaces Supported: |
USB, RS232 |
User Environment |
|
Operating Temperature: |
32° to 122° F / 0° to 50° C |
Storage Temperature: |
-40° to 158° F / -40° to 70° C |
Humidity: |
5% to 95%, non-condensing |
Drop/Shock Specifications: |
Withstands multiple 1.5m(6ft.) drops to concrete |
Ambient Light Immunity: |
Immune to normal indoor lighting up to 1600 Lux. |
Decode Ranges |
|
Symbol & Density |
Range |
Code 39 (5 mil) |
40mm-110mm |
100%UPCA (13 mil) |
5mm-280mm |
COde 39 (20 mil) |
15mm-330mm |
PDF417 (6.8mil) |
20mm-130mm |
DataMatrix (10mil) |
10mm-110mm |
QR Code (20mil) |
5mm-230mm |
Resolution 1D Code 39 |
4.8mil (0.122mm) |
Resolution 2D Data Matrix |
6.6mil (0.168mm) |
Performance may be impacted by bar code quality and environmental conditions |
